Uniforest Uniforest Titan 40/20 Sawblade Processor

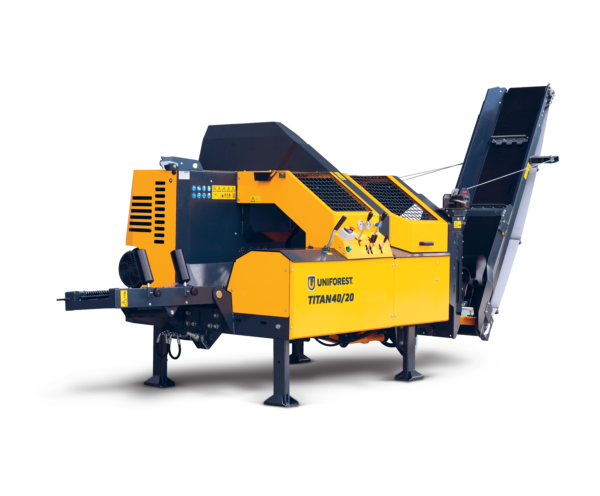

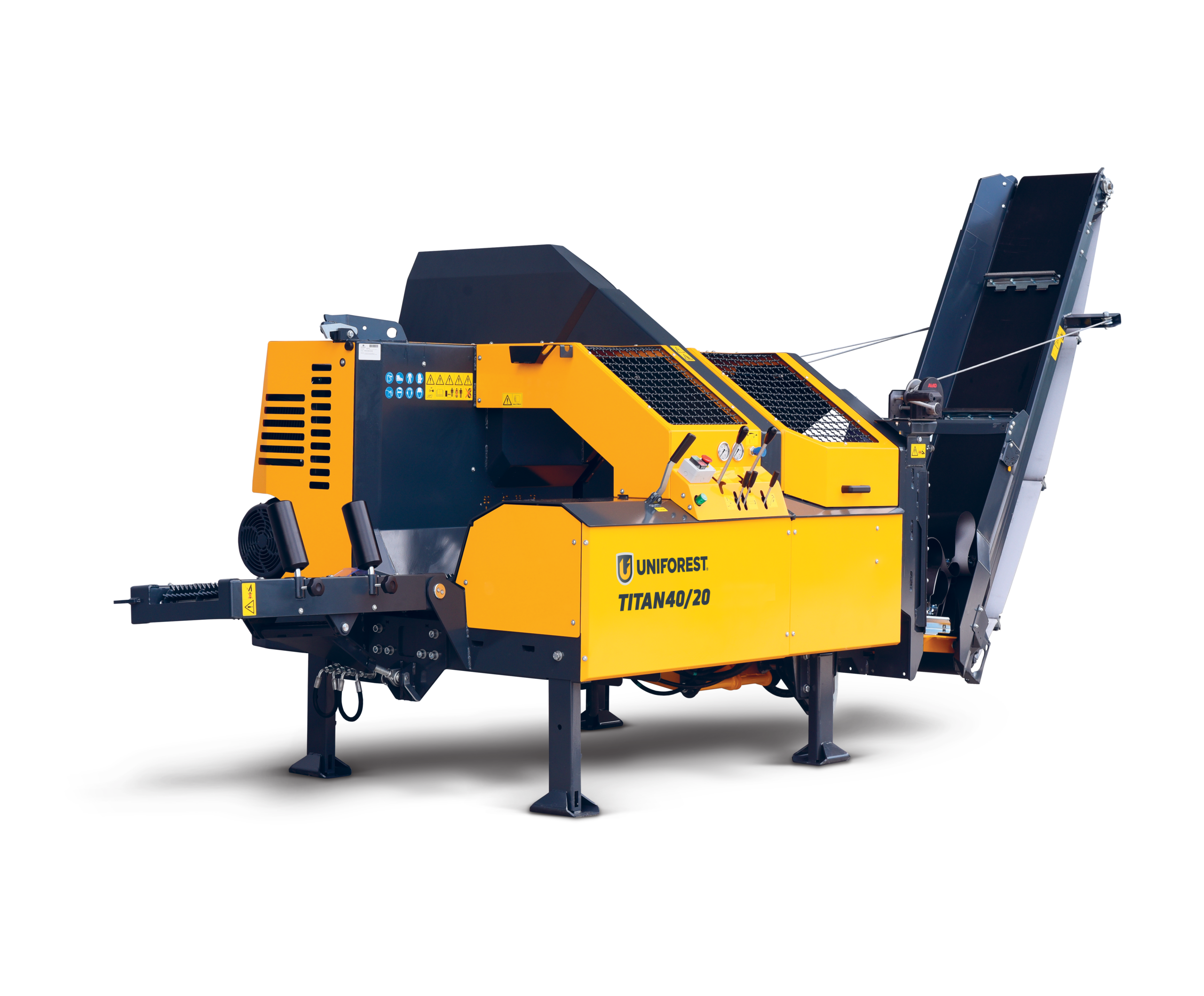

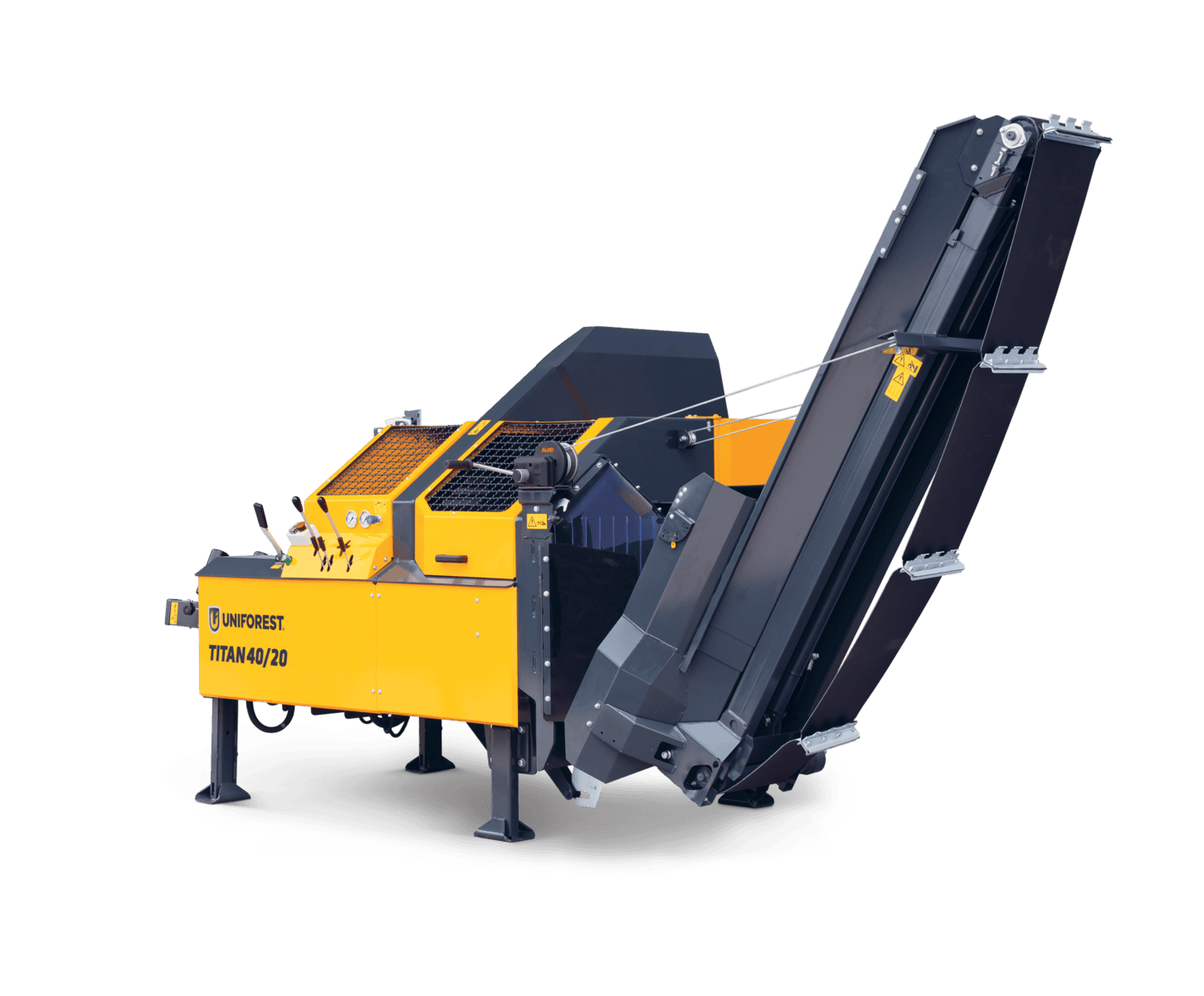

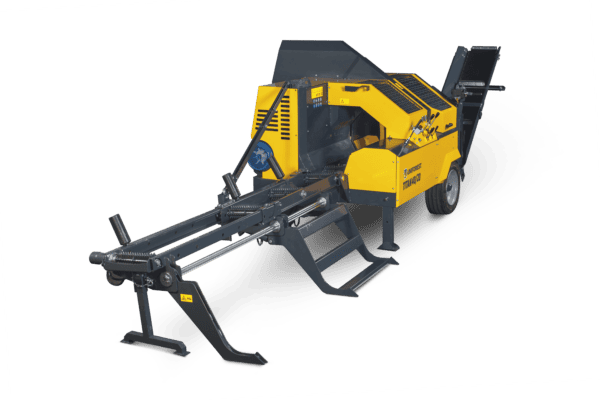

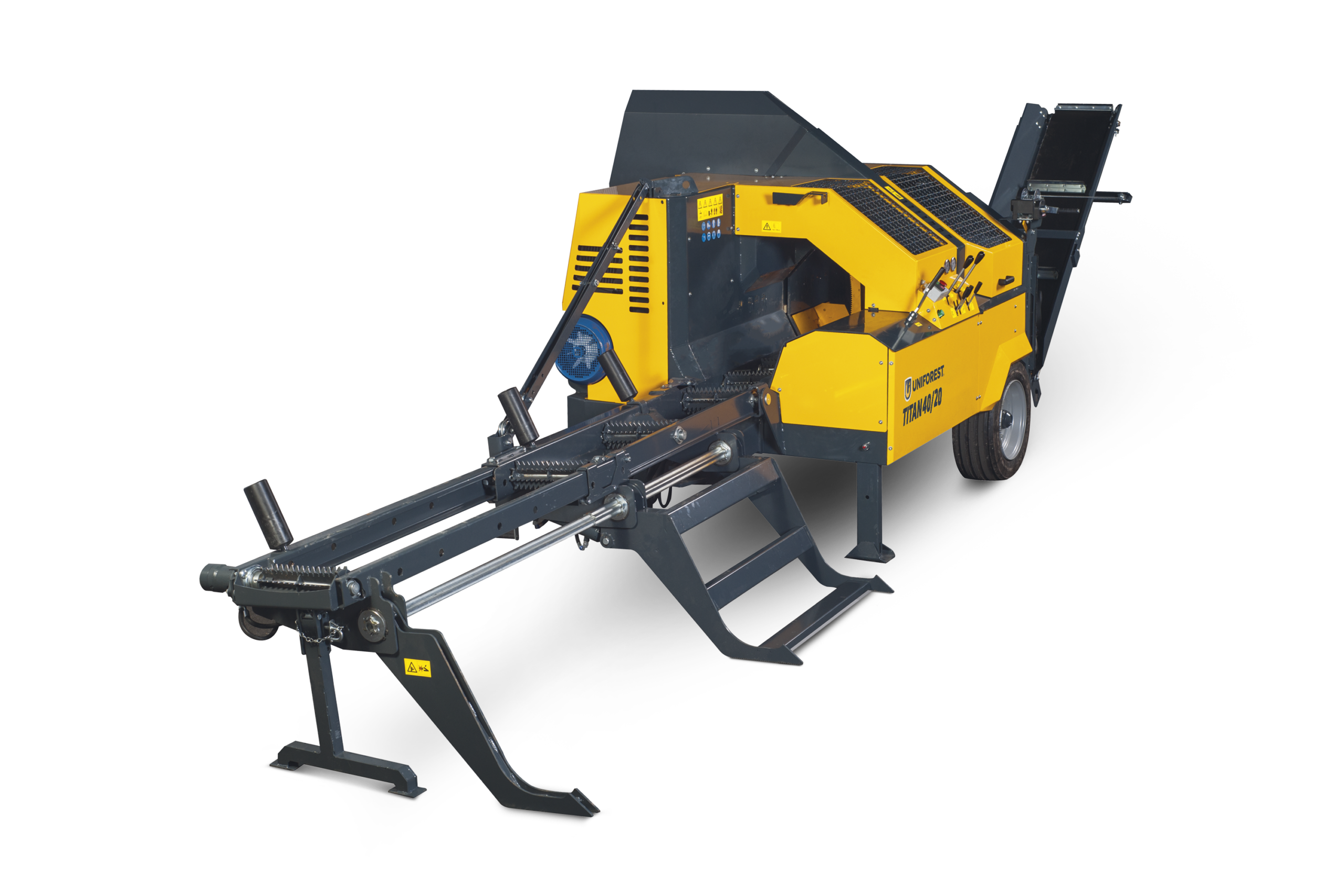

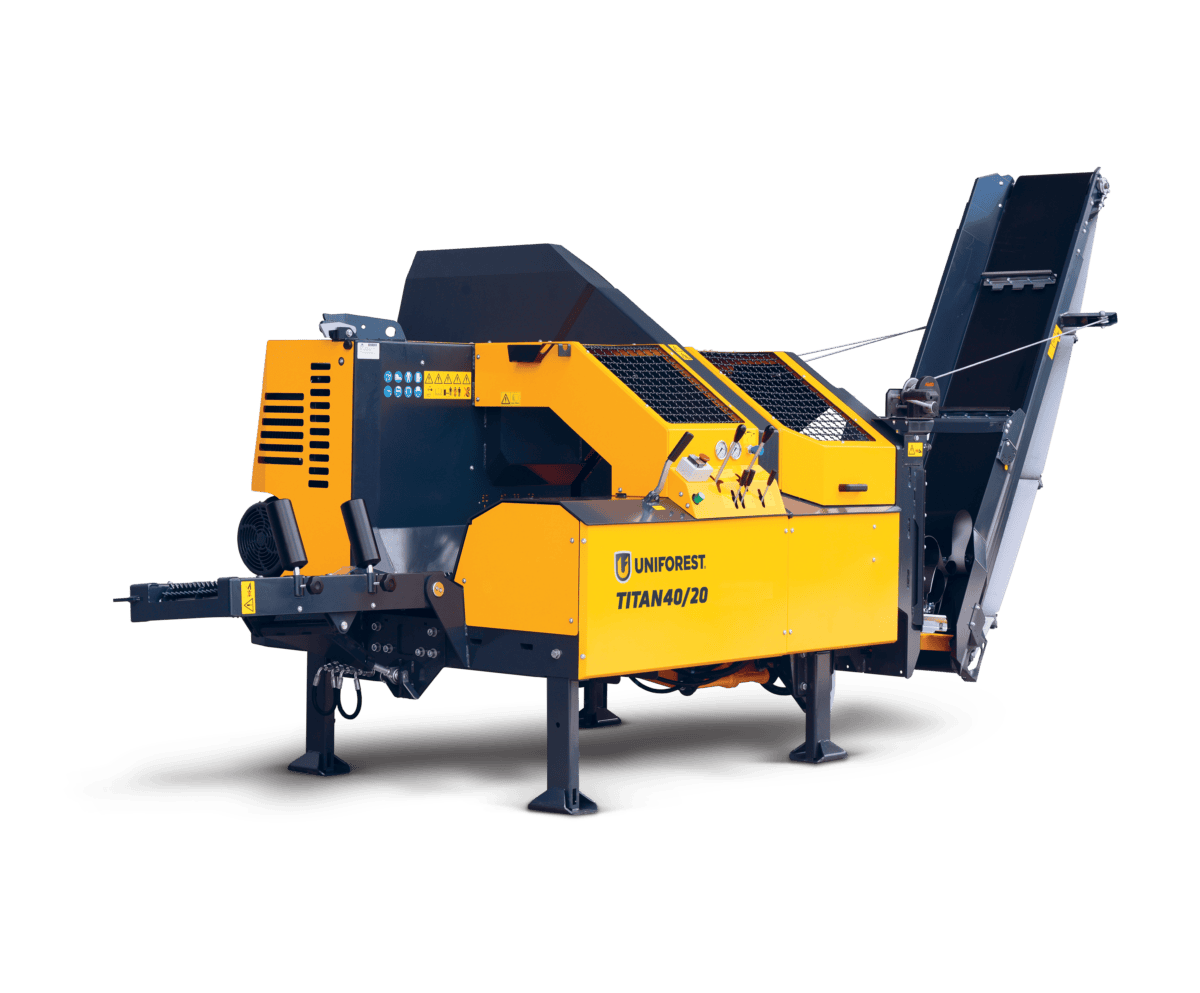

Uniforest TITAN 40/20 Firewood Processor

The Uniforest TITAN 40/20 is a professional firewood processor designed for operators who need high productivity, reliable performance and efficient timber handling.

Built around a heavy-duty 1,000 mm WIDIA carbide circular saw blade, the TITAN 40/20 delivers fast, clean cutting of logs up to 400 mm in diameter. The circular saw movement and cutting speed are hydraulically controlled, giving the operator smooth and consistent cutting performance. Unlike a chainsaw-based system, the WIDIA saw blade requires no chain oil, helping reduce maintenance and environmental contamination.

The machine features a powerful 200 kN / 20-tonne splitting force and allows firewood to be cut to lengths of 25, 33, 40, 50 or 60 cm, making it suitable for a wide range of commercial firewood applications.

Key Features

• Maximum log diameter: 400 mm
• 20-tonne / 200 kN splitting force
• 1,000 mm WIDIA carbide circular saw blade
• Cutting lengths: 25, 33, 40, 50 and 60 cm
• Hydraulically adjustable splitting knife
• BOOMSPEED system for faster splitting cycles
• Built-in hydraulically adjustable feed-in table
• Hydraulic log clamp for secure cutting
• Adjustable hydraulic transport rollers
• 5 m discharge conveyor
• 420 mm wide conveyor belt
• Conveyor adjustment up to ±15°
• Mechanical-hydraulic controls
• Uniforest Connect compatible
• Cat II linkage
• Recommended minimum tractor power: 45 HP
• PTO speed: 420–490 rpm

Faster Firewood Production

The TITAN 40/20 features Uniforest’s BOOMSPEED system, which uses double-piston cylinders to increase cylinder speed during lower-resistance movement. This can reduce the splitting cycle by up to 40%, helping improve overall production efficiency.

Designed for professional firewood producers, contractors and larger rural operations, the TITAN 40/20 provides a complete cutting, splitting and conveying solution in one robust machine.
